Optical Kaw Inline

Qauv: LTSC-143
Optical Distribution Point (ODP) yog ib qho tseem ceeb hauv kev sib txuas ntawm fiber ntau optic. Nws ua haujlwm raws li qhov chaw nruab nrab uas cov fibers kho qhov muag raug txiav, sib txuas, thiab faib rau cov neeg siv khoom lossis cov khoom siv hauv network. ODP feem ntau yog ntsia rau hauv ib puag ncig sab nraum zoov, xws li cov txee hauv txoj kev lossis lub tsev hauv qab daus, los pab txhawb kev xa tawm fiber ntau.

Xa kev nug

Qauv: LTSC-143

Optical Distribution Point (ODP) yog ib qho tseem ceeb hauv kev sib txuas ntawm fiber ntau optic. Nws ua haujlwm raws li qhov chaw nruab nrab uas cov fibers kho qhov muag raug txiav, sib txuas, thiab faib rau cov neeg siv khoom lossis cov khoom siv hauv network. ODP feem ntau yog ntsia rau hauv ib puag ncig sab nraum zoov, xws li cov txee hauv txoj kev lossis lub tsev hauv qab daus, los pab txhawb kev xa tawm fiber ntau.

Lub hom phiaj tseem ceeb ntawm ODP yog txhawm rau muab qhov sib cais ntawm tus neeg muab kev pabcuam lub network thiab cov neeg siv khoom lub chaw. Nws tso cai rau kev faib cov ntaub ntawv ceev ceev, lub suab, thiab cov kev pabcuam video rau ntau tus neeg siv lossis lub tsev los ntawm ib qho fiber ntau optical.

Lub ODP muaj ntau lub ntsiab lus tseem ceeb, xws li: optic fiber cable txiav, optic fiber patching los yog splicing, optic PLC splitter installation thiab kev twb kev txuas, fiber ntau faib thav duab thiab kev tiv thaiv raws li optic kaw.

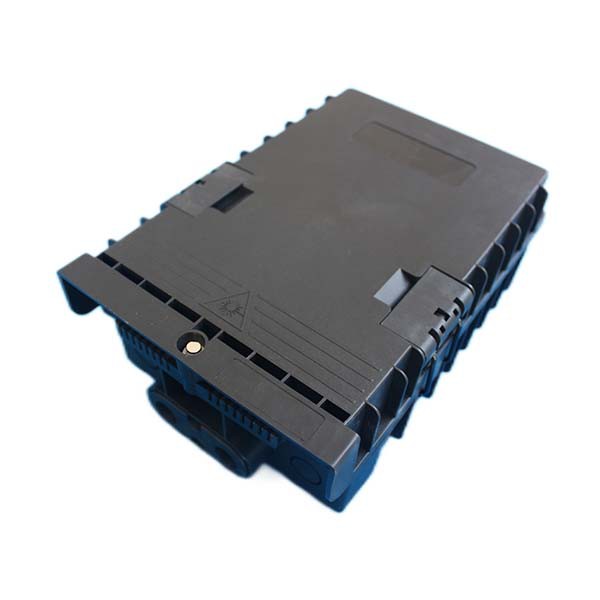

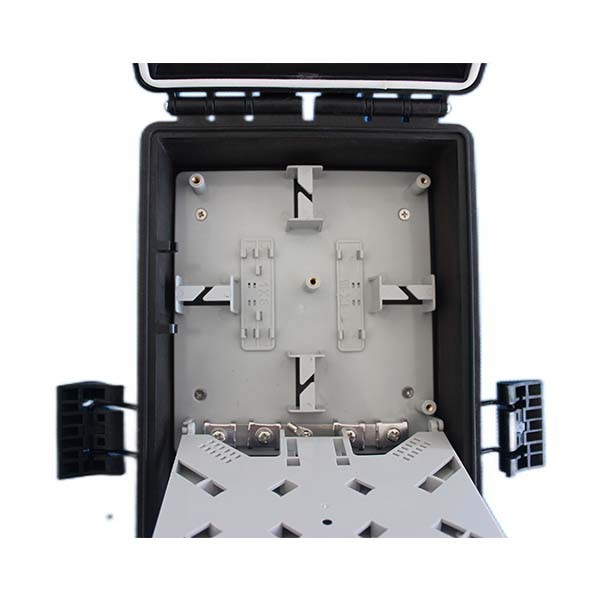

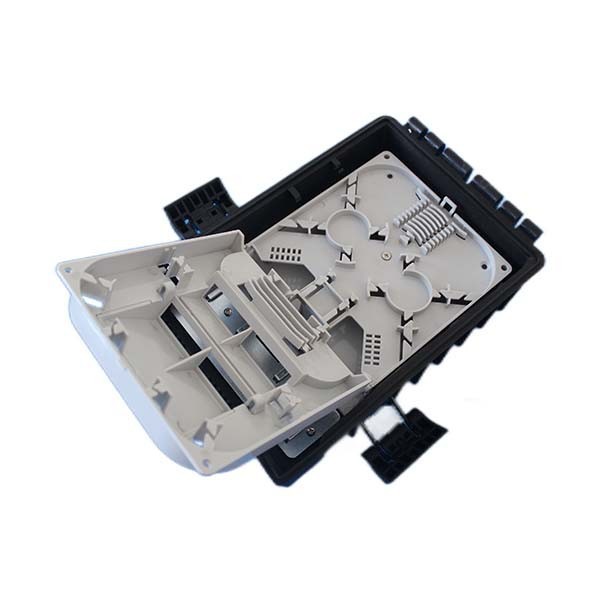

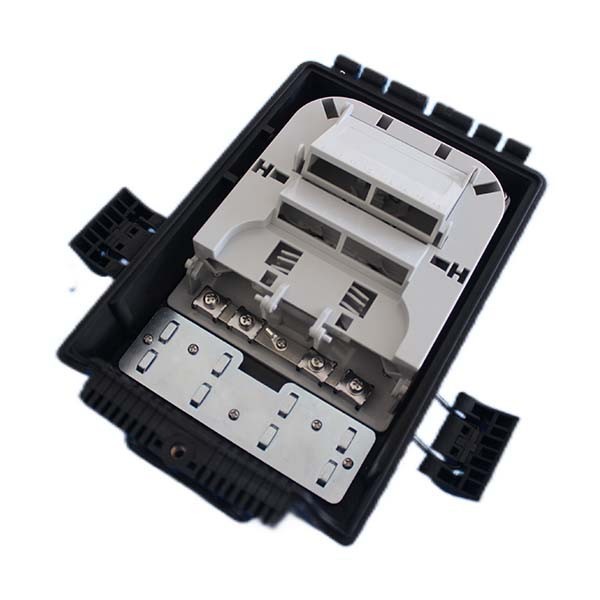

Peb inline optic kaw qauv LTSC-143 yog ib tug raug tsim raws li lub hom phiaj ntawm ODP, uas muaj xws li saum toj no functions thiab haum rau sab nraum zoov ib puag ncig, no inline optic kaw muaj 4 daim ntawm cable chaw nres nkoj rau optic fiber cable inlet, thiab sab hauv ntawm no inline kaw muaj qhov sib txawv configuration rau kev sib txawv ntawm optic cable tswj, splice thiab txuas nrog PLC installation, max. txhawb 16 daim ntawm qhov hluav taws xob poob, qhov kaw hauv kab no yog qhov kev daws teeb meem zoo tshaj plaws rau FTTx daim ntawv thov.

Qhov kev kaw hauv kab no yog tsim los ntawm kev ua haujlwm zoo ntawm cov yas yas uas muaj peev xwm tiv thaiv kev tawm tsam ntawm ib puag ncig xws li kub hloov pauv, noo noo, UV thiab cuam tshuam, qhov kaw hauv kab no yog tsim los rau lifespan 25 xyoo thiab muab kev pabcuam zoo nyob rau lub sijhawm. kev pabcuam.

Khoom Specification

Sab nraud qhov ntev (LxWxH, mm)	280×182×102
sealing hom	Neeg kho tshuab
Tus naj npawb ntawm inlet/out ports	4 optical nkag ports / 16 poob cable ports
Txoj kab uas hla ntawm optical voj cable (mm)	φ12 max.
Txoj kab uas hla ntawm optical drop cable (mm)	φ3.0/3.2
Splicing muaj peev xwm rau splice tais	16
Max. tus naj npawb ntawm cov tais	1
Max. splice peev (ib fiber ntau)	16
Khoom siv	MPP
IP qeb	IP66
Adapter loading	SC Simplex Adapter x 8 pcs

Khoom Configuration

Tsis muaj	Lub npe	Tsis muaj	Lub npe
1	Splice tiv thaiv	5	Lub cev tsis muaj zog
2	Cable khi	6	Rwb thaiv tsev daim kab xev
3	Yas expansion bolt	7	Mastic Gel
4	Hlau self-tapping ntsia hlau	8	Hlau voj
