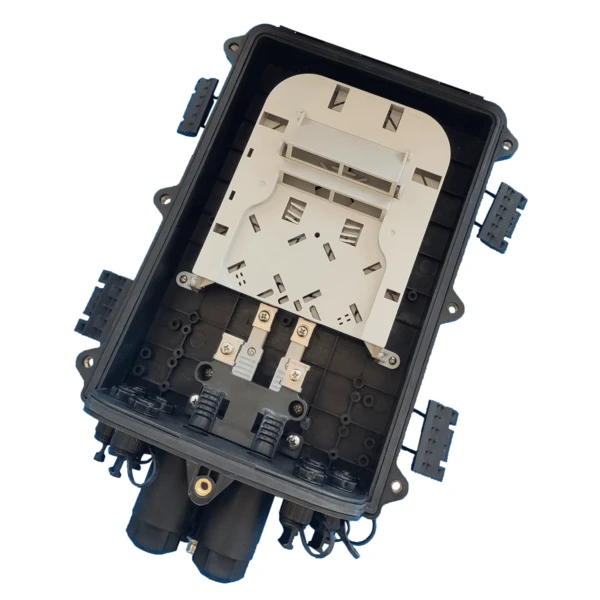

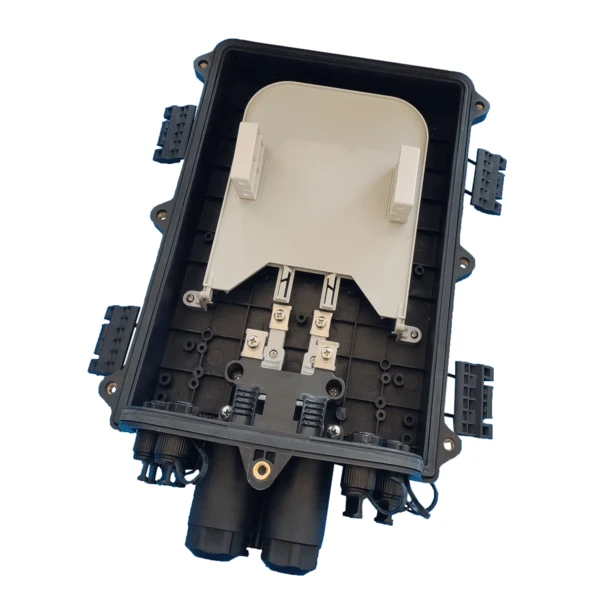

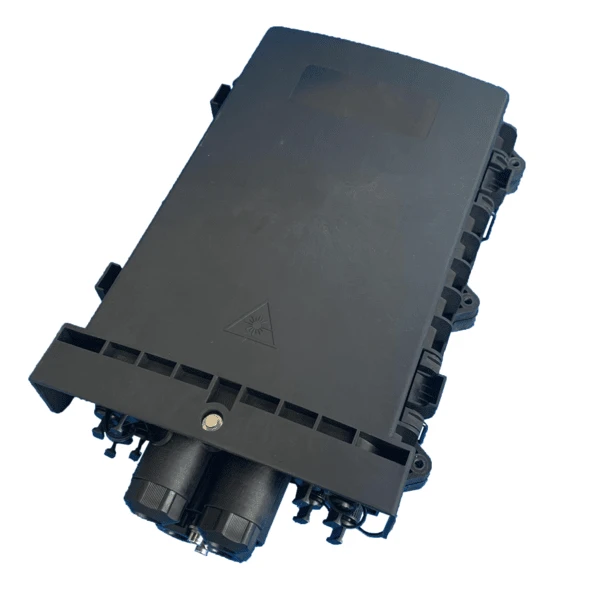

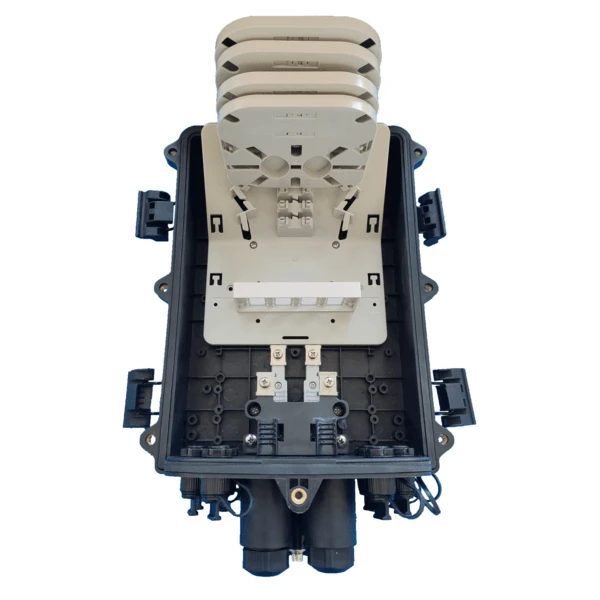

Terminal Kaw 144F 8 Terminals

Qauv No.: LPTC-010
LPTC-010 yog tsim los rau kev sib txuas yooj yim, muaj kev ntseeg siab thiab tiam tshiab ntawm fiber ntau optical splice kaw, uas yog nruab nrog 4pcs optical cable inlets txais yuav ntau yam kho qhov muag cables thiab 8pcs waterproof connector rau ceev installation ntawm nkag thiab davhlau ya nyob twg.

Xa kev nug

Kev piav qhia

Qauv No.	Kev faib tawm
LPTC-010	Terminal Kaw 144F 8 Terminals (waterproof connector)

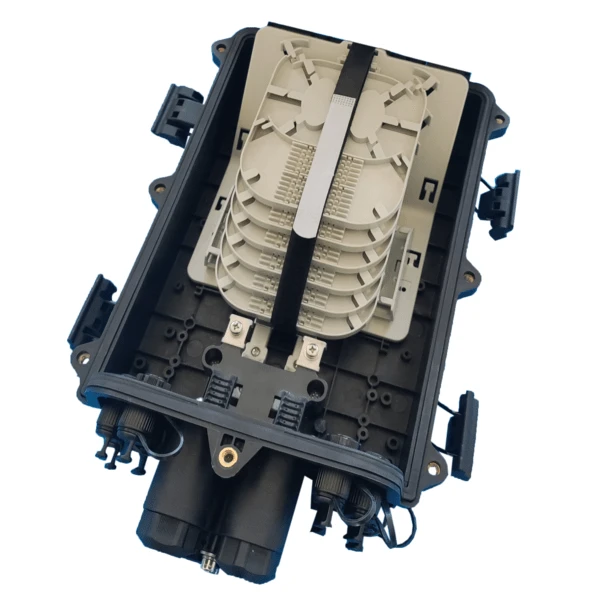

LPTC-010 splice kaw yog tsim los rau kev sib txuas yooj yim, muaj kev ntseeg siab thiab tiam tshiab ntawm fiber ntau optical splice kaw, uas yog nruab nrog 4pcs optical cable inlets los txais ntau yam kho qhov muag cables thiab 8pcs waterproof connector rau ceev installation ntawm nkag thiab davhlau ya nyob twg, kev sib xyaw tsim ntawm mounting mechanism cuam tshuam rau kev kaw yuav tsum tau siv nyob rau hauv ib puag ncig xws li phab ntsa, ncej pedestal lossis tes qhov / lub qhov loj.

Txhawm rau ua kom muaj peev xwm tiv thaiv qhov sib txuas kaw los ntawm ib puag ncig hnyav, splice kaw xaiv cov ntaub ntawv muaj zog thiab cov tshuab tsim los ua pov thawj qhov ua tau zoo nyob rau hauv qhov xwm txheej hnyav raws li tau hais tseg hauv cov txheej txheem thoob ntiaj teb sib txawv.

Specifications

Yam khoom	Specifications
Sab nraud dimension (mm)	382 x 224 x 139 mm
Khoom siv tsev	MPP
sealing hom	Neeg kho tshuab

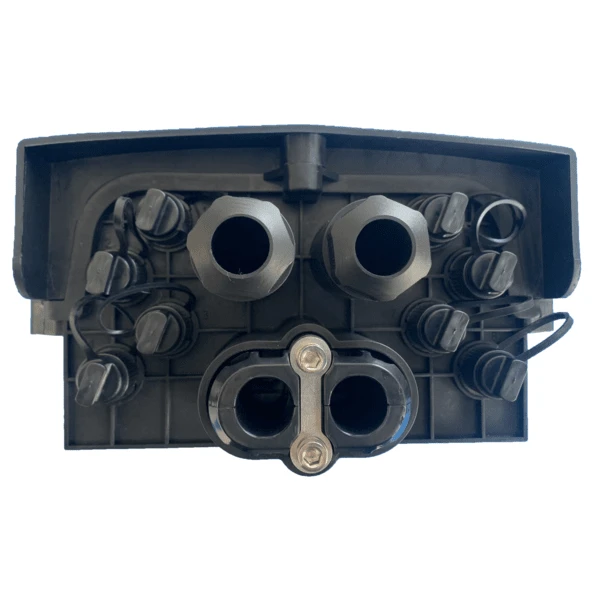

Tus naj npawb ntawm cov chaw nres nkoj	1 oval chaw nres nkoj rau 1 looped cable nrog max dia. 17.5mm 3. 2 round ports rau cable nrog max dia. 17.5mm 3.
IP qib	IP68
Splicity peev	6*24=144F
Radius ntawm curvature	>30 hli
Ua haujlwm kub (degree)	-40 rau ntxiv 65 degree
Rwb thaiv tsev tsis kam	Ntau dua lossis sib npaug rau 2X104MΩ

Kev thov ib puag ncig

Kev ua haujlwm kub	-40 ºC- ntxiv rau 65 ºC
Installation kub	-15 ºC- ntxiv rau 40 ºC
Cia kub	-45 ºC- ntxiv rau 75 ºC

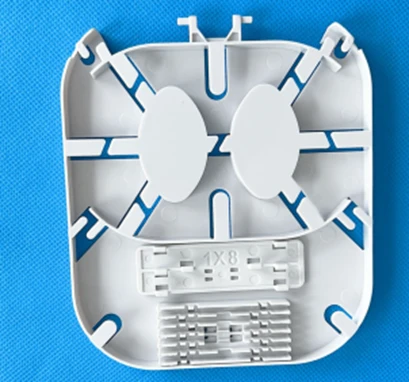

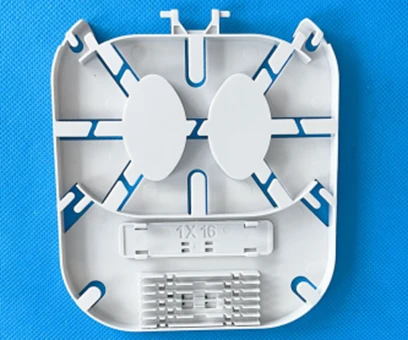

Splice Tais

Tsis muaj.	Daim duab	Muaj peev xwm
1		24F (2 txheej)
2		12F (2 txheej) ntxiv rau 2 PLC splitters
3		12F (2 txheej) ntxiv rau 1 PLC splitters
